H04-High Speed Serrated Hydraulic Cutterhead

Application / Machine
Planing and finish planing at high feed speeds of 20 to 120m min-1; Four side moulders with jointing device.

Workpiece material
Softwood, hardwood.

Technical information

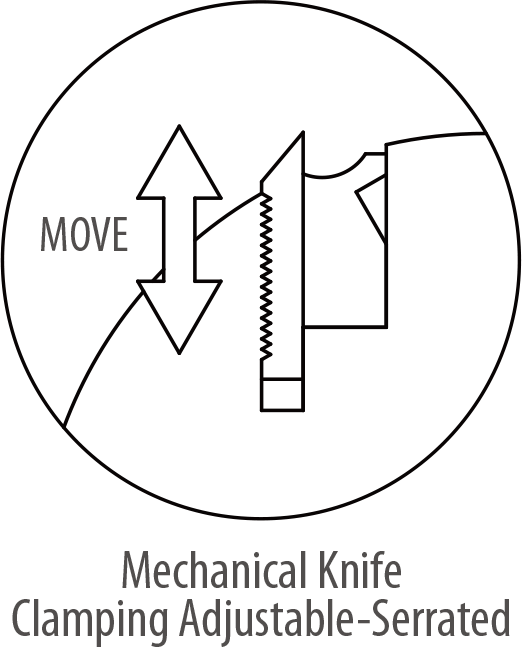

Steel tool body with integrated hydro clamping system. Four jointing, the knives are to be Sharpened in the tool body to a concentricity of < 0.005mm.

Item NO.	D (mm)	B (mm)	H (mm)	T
H0415010	150	40 / 50	100	4 / 6
H0415013	150	40 / 50	130	4 / 6
H0415015	150	40 / 50	150	4 / 6
H0415018	150	40 / 50	180	4 / 6
H0415020	150	40 / 50	200	4 / 6
H0415023	150	40 / 50	230	4 / 6
H0415025	150	40 / 50	250	4 / 6
H0416010	160	40 / 50	100	4 / 6 / 8
H0416013	160	40 / 50	130	4 / 6 / 8
H0416015	160	40 / 50	150	4 / 6 / 8
H0416018	160	40 / 50	180	4 / 6 / 8
H0416020	160	40 / 50	200	4 / 6 / 8
H0416023	160	40 / 50	230	4 / 6 / 8
H0416025	160	40 / 50	250	4 / 6 / 8
H0418010	180	40 / 50	100	6 / 8 / 10
H0418013	180	40 / 50	130	6 / 8 / 10
H0418015	180	40 / 50	150	6 / 8 / 10
H0418018	180	40 / 50	180	6 / 8 / 10
H0418020	180	40 / 50	200	6 / 8 / 10
H0418023	180	40 / 50	230	6 / 8 / 10
H0418025	180	40 / 50	250	6 / 8 / 10
H0420010	200	40 / 50	100	8 / 10 / 12
H0420013	200	40 / 50	130	8 / 10 / 12
H0420015	200	40 / 50	150	8 / 10 / 12
H0420018	200	40 / 50	180	8 / 10 / 12
H0420020	200	40 / 50	200	8 / 10 / 12
H0420023	200	40 / 50	230	8 / 10 / 12
H0420025	200	40 / 50	250	8 / 10 / 12
